Seal gaps and fight leaks with our A Short Cone Standard Flashing.

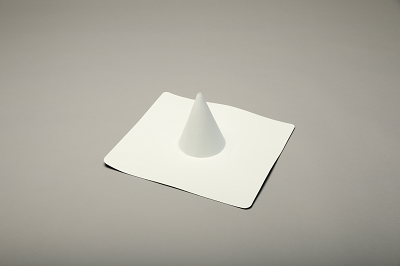

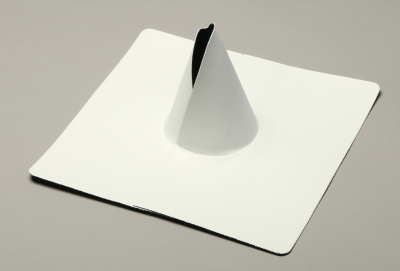

This A Short Cone Standard Flashing is the right solution for smaller areas susceptible to leakage. Our Short Cone has a square base and stands at 6” in height with a 4” base diameter, and comes in split and non-split forms. Should you need a similar design in a larger form, check out our A Cone Standard Flashing

Be sure to keep flashings secured properly to any roof with Acme Cone’s pipe and cone clamps. These clamps range from 2” to 48”, fitting almost any pipe or cone for easy installation!



Things To Know:

What Is A Roof Flashing?

A roof flashing is a type of seal set against low slope roofs designed to properly route water off the surface and to keep water out of roof joints.



What Are Acme Cone’s Flashings Made From?

Our roof flashings are built from PVC [polyvinyl chloride] and TPO [thermoplastic polyolefin]. We hand-inspect each and every vent and flashing built before we send them to customers to ensure success on any project.



What Types of Roof Flashings Does Acme Cone Produce?

We have several different types of roof flashings available for any problem you may encounter during a roofing project:

  • Commercial Drains
  • Cone Flashings
  • Corner Flashings
  • Scupper Flashings
  • Tube Wrap Flashings
  • Vents



We offer these products in standard sizes but know that your construction might need something different. That’s why we have our custom build page, so we can help you design products specific to your needs!





Specifications

Dimensions:

  • .25” Top diameter
  • 4” Bottom diameter
  • 6” Height
  • 5” Flange
  • Square Base
  • 1" Overlap



Need something else? We’re here to answer any questions you may have. Give us a call or request a quote today so we can keep your roof dry tomorrow.

(866) 516-4079

or

Request A Quote Today

A Short Cone Standard Flashing
